Screwed

1 PC

1H2K TYPE

SIZE: ¼” – 2”
1 PIECE
SCREWED END

FEATURES:

– PIPE THREAD IN ACCORDANCE WITH:

  • ANSI B2.1(BASIC STD FOR STEEL PIPE THREADS)
  • ANSI B1.20 (NPTF)
  • BS21:1973
  • DIN259/2999
  • ISO228

– BLOW-OUT PROOF STEM
– REDUCE BORE
– 2000 PSI W.O.G
– MATERIAL TRACEABILITY
– MATERIAL:

  • ASTM-A351-CF8,ASTM-A351-CF8M,A216-WCB

– OPTION: POLISHED SURFACE ( SST ONLY)

Download Technical Specifications

11K TYPE

SIZE: ¼” – 2”
1 PIECE
INVESTMENT CASTING

FEATURES:

PIPE THREAD IN ACCORDANCE WITH:

  • ANSI B2.1(BASIC STD FOR STEEL PIPE THREADS)
  • ANSI B1.20 (NPTF)
  • BS21:1973
  • DIN259/2999
  • ISO228

– BLOW-OUT PROOF STEM
– REDUCE BORE 1000 PSI W.O.G / 800 PSI W.O.G
– MATERIAL TRACEABILITY
– MATERIAL:

  • ASTM-A351-CF8M (INVESTMENT CASTING)

– OPTION:

  • LOCKING DEVICE



2 PC

Sale!

BALL VALVE, 1000 PSI, FULL PORT: 21K TYPE

$10.21$17.73

SIZE: ¼” – 4”
SCREWED END

FEATURES:

– PIPE THREAD IN ACCORDANCE WITH:

  • ANSI B2.1(BASIC STD FOR STEEL PIPE THREADS)
  • ANSI B1.20 (NPTF)
  • BS21:1973
  • DIN259/2999
  • ISO228

– BLOW-OUT PROOF STEM
– FULL PORT
– 1000 PSI W.O.G
– LUG BODY
– LOCKING DEVICE
– MATERIAL TRACEABILITY
– MATERIALS:

  • ASTM-A351-CF8,ASTM-A351-CF8M,A216-WCB

OPTION:

  • DRILLING & TAPPED MOUNTING PAD
Sale!

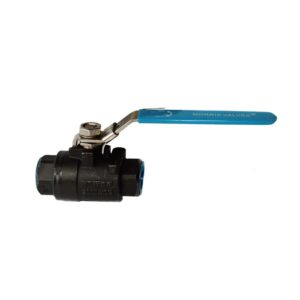

BALL VALVE, 2000 PSI,FULL PORT: 22K TYPE

$14.31$38.03

SIZE: ¼” – 2”
SCREWED END

FEATURES:

PIPE THREAD IN ACCORDANCE WITH:

  • ANSI B2.1(BASIC STD FOR STEEL PIPE THREADS)
  • ANSI B1.20 (NPTF)
  • BS21:1973
  • DIN259/2999
  • ISO228

– BLOW-OUT PROOF STEM
– FULL PORT
– 2000 PSI W.O.G
– LUG BODY
– LOCKING DEVICE
– MATERIAL TRACEABILITY
– MATERIAL:

  • ASTM-A351-CF8,ASTM-A351-CF8M,A216-WCB

– OPTION:

  • DRILLING & TAPPED MOUNTING PAD

23K TYPE

SIZE: ¼” – 2”
SCREWED END

FEATURES:

PIPE THREAD IN ACCORDANCE WITH:

  • ANSI B2.1(BASIC STD FOR STEEL PIPE THREADS)
  • ANSI B1.20 (NPTF)
  • BS21:1973
  • DIN259/2999
  • ISO228

– BLOW-OUT PROOF STEM
– FULL PORT
– 3000 PSI W.O.G
– LUG BODY
– LOCKING DEVICE
– MATERIAL TRACEABILITY
– MATERIAL:

  • ASTM-A351-CF8,ASTM-A351-CF8M,A216-WCB

– OPTION:

  • DRILLING & TAPPED MOUNTING PAD

3 PC

31K TYPE

SIZE: ¼” – 4”
SCREWED
BUTT & SOCKETWELD END

FEATURES:

– PIPE THREAD IN ACCORDANCE WITH:

  • ANSI B2.1(BASIC STD FOR STEEL PIPE THREADS)
  • ANSI B1.20 (NPTF)
  • BS21:1973
  • DIN259/2999
  • ISO228

– BLOW-OUT PROOF STEM
– FULL PORT
– 1000 PSI W.O.G
– LUG BODY
– LOCKING DEVICE
– MATERIAL TRACEABILITY
– MATERIALS:

  • ASTM-A351-CF8, ASTM-A351-CF8M, A216-WCB

31KM TYPE

FEATURES:

  • MOUNTING PAD FOR ISO 5211 STD

– PIPE THREAD IN ACCORDANCE WITH:

  • ANSI B2.1(BASIC STD FOR STEEL PIPE THREADS)
  • ANSI B1.20 (NPTF)
  • BS21:1973
  • DIN259/2999
  • ISO228

– BLOW-OUT PROOF STEM
– FULL PORT
– 1000 PSI W.O.G
– LUG BODY
– LOCKING DEVICE
– MATERIAL TRACEABILITY
– MATERIALS:

  • ASTM A351 CF8M / ASTM A 351 CF8 /
    ASTM A 216 WCB

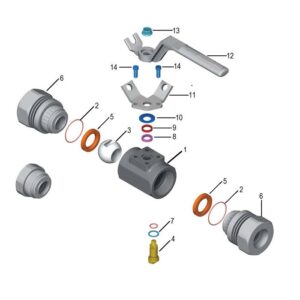

33K TYPE

SIZE: ¼” – 2”
SCREWED / BUTT & SOCKETWELD END

FEATURES:

  • MOUNTING PAD FOR ISO 5211 STD

– PIPE THREAD IN ACCORDANCE WITH:

  • ANSI B2.1(BASIC STD FOR STEEL PIPE THREADS)
  • ANSI B1.20 (NPTF)
  • BS21:1973
  • DIN259/2999
  • ISO228

– BLOW-OUT PROOF STEM
– FULL PORT
– 1000 PSI W.O.G
– LUG BODY
– LOCKING DEVICE
– MATERIAL TRACEABILITY
– MATERIALS:

  • ASTM A351 CF8M / ASTM A 351 CF8 / ASTM A 216 WCB

Flanges

FBV – ANSI 300#

FEATURES:

– FACE TO FACE DIMENSION:

  • ANSI B16.10

– END FLANGE DIMENSION:

  • ANSI B16.5

– DESIGN:

  • ANSI B16.34

– TEST:

  • API 598

– WITH ISO 5211 MOUNTING PAD
– INVESTMENT CASTING BODY
– BLOW-OUT PROOF STEM
– LEVER OPERATED OR GEAR OPERATED
– MATERIAL TRACEABILITY

– MATERIALS: ASTM A351-CF8M / A 351-CF8
ASTM A216Gr-WCB

FBV – ANSI 150#

FEATURES:

– FULL PORT
– FACE TO FACE DIMENSION:

  • ANSI B16.10

– END FLANGE DIMENSION:

  • ANSI B16.5

– TEST:

  • API 598

– WITH ISO 5211 MOUNTING PAD
– INVESTMENT CASTING BODY
– BLOW-OUT PROOF STEM
– MATERIAL TRACEABILITY

– MATERIAL:

  • A216 Gr-WCB / A351Gr-CF8 / A351Gr-CF8M

– 2-1/2” – 4” SOLID BALL OR HOLLOW BALL

FBV – DIN PN 16

FEATURES:

– FACE TO FACE DIMENSION:

  • DIN 3202-F4

– END FLANGE DIMENSION:

  • PN16 DIN 2633

– TEST:

  • EN 12266-1

– WITH ISO 5211 MOUNTING PAD
– INVESTMENT CASTING BODY
– BLOW-OUT PROOF STEM
– LEVER OPERATED
– MATERIAL TRACEABILITY

MATERIALS:

  • CARBON STEEL ( 1.0619) / STAINLESS STEEL (304/1.4308) / STAINLESS STEEL (316/1.4408)

FBV – DIN PN 40

FEATURES:

– FACE TO FACE DIMENSION:

  • DIN 3202-F4

– END FLANGE DIMENSION:

  • PN40, DIN 2635

– TEST:

  • EN 12266-1

– ANTI-STATIC DEVICE, FIRE SAFE DESIGN
– WITH ISO 5211 MOUNTING PAD
– INVESTMENT CASTING BODY
– BLOW-OUT PROOF STEM
– LEVER OPERATED
– MATERIAL TRACEABILITY

MATERIALS:

  • CARBON STEEL ( 1.0619) / STAINLESS STEEL (304/1.4308) / STAINLESS STEEL (316/1.4408)
