API 5DP & API 7-1 HW Drill Pipe

API 5DP Drill Pipe for Oil & Gas

Drill pipes are steel tubular fitted with threaded ends called Tool Joints, which are commonly used in tension in the top part of the drill string to “pump fluid and transmit torque to the bit”. The DRILL STRING is the drill pipe with the tool joints attached.

The drill pipe connects the rig surface equipment with the bottom hole assembly and the bit, both to pump drilling fluid to the bit and to be able to raise, lower and rotate the bottom hole assembly and bit.

High Strength Drill Pipe – Because of deeper drilling and higher stress levels, grades of drill pipe stronger than Grade E-75 have been developed. Grades and minimum tensile yield strengths are:

Drill Pipe Grade Minimum Tensile Yield Strength:
X-95 95,000
G-105 105,000
S-135 135,000
V-150* 150,000
*V-150 is not a standard API grade but is listed as the next higher grade above S-135.
Markings on Tool Joints for Identification of Drill String Components.-
MONTH AND YEAR WELDED


Download Technical Specifications

API 5L CW PIPE

CONTINUOUS WELDED PIPE (CW)

-Longitudinally furnace butt welded or by mean of continuous welded process.
* Continuous welded pipes are considered as the lowest cost variants among all steel pipes.

Specifications

* ASTM A-53 Type F, which is (Grade A only).
* ASTM A-53A/53M, Federal, Specification WW-P404 & ASME B36.10M & B36.19M.
* ASTM A-120 (withdrawn 1988). A-501. A-589, A-618.and API5L.


Download Technical Specifications

API 5L DSAW PIPE

DOUBLE SUBMERGED ARC WELD PIPE (DSAW)

Derives its name from the welding process wherein the welding arc is submerged in flux while the welding takes place.
Both inside and outside welds are required and are usually accomplished in separate processes, hence the word “double.”
These separate welds consume a portion of the other resulting in a single high quality weld nugget.


Download Technical Specifications

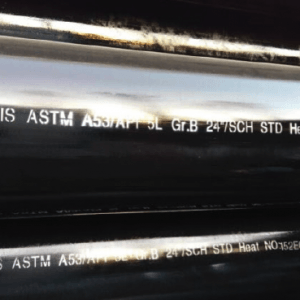

API 5L ERW PIPES

ELECTRIC RESISTANCE WELDED PIPES (ERW)

The processing of Electric Resistance Welded (ERW, induction welding and contact welding)pipe begins as a coiled
plate of steel with appropriate thickness and specific width to form a pipe that conforms to its relevant specification.


Download Technical Specifications

API 5L LSAW PIPE

LSAW PIPES

Longitudinally Submerged Arc Welded Steel pipes. – Longitudinal edges of steel plates as raw material, are first beveled using carbide milling equipment; Beveled plates are then formed into a U shape using a U-press and subsequently
into an O shape using an O-press.UOE is the name of the method used for production of longitudinally welded large
diameter pipes.


Download Technical Specifications

API 6D Check Valve DCKV TYPE

DUAL PLATE, WAFER STYLE, CHECK VALVE
(ASTM A351 CF8M/CF8)

FEATURES:

-INVESTIMENT CASTING:
-SIZE:

  • DN40-DN600

-PRESSUE:

  • DINPN16/PN40 (ANSI150/300#)

-MATERIAL TRACEABILITY
-MATERIAL:

  • ASTM-A351 CF8M/CF8

-BODY & PLATE:

  • ASTM-A351 CF8M/CF8

-SEAT:

  • NBR.EPDM: VITON,

Metal to Metal
-DESIGN:

  • API 594 Dual Plate,

Wafer Style
FACE – FACE:

  • API-549/API-6D

-INSPECTION:

  • API-598/ASME-B16.34

-SULT FLANGED FOR:

  • ISO-7005-1


Download Technical Specifications

API 6D Check Valve FCKV TYPE

FCKV TYPE

API602, FORGED CHECK VALVES

SPECIFICATIONS:

DESIGN: API 602 / ANSI B16.34

SCREWED ENDS: ASME B1.20.1

FLANGED ENDS: ANSI/ASME B16.5

BUTT-WELDING ENDS: ASME B16.25.

SOCKET-WELDING ENDS: ASME B16.11

TEST: HYDROSTATIC TESTED 100% TO API 598


Download Technical Specifications

API 6D Check Valve SCV TYPE

API6D FULL PORT SWING CHECK VALVE
FLANGED /BUTT WELDING
CLASS (150# – 2500#)

SPECIFICATIONS:

Design: API 6D / ANSI B16.34

Size: 2”-36”, FULL PORT, PIGGABLE.

Pressure Rating: Class ( 150# – 2500#)

Face to Face: API6D/ ANSI/ASME B16.10

End Connection:
– RF/RTJ
* ANSI/ASME B16.5 (2 – 24)”.
* ASME B16.47(MSS-SP-44)(24” – UP)
– Butt Welding (ANSI B16.25)

Test: Hydrostatic Tested 100% to
API 6D / API 598.


Download Technical Specifications

API 6D Thru-Conduit Slab Gate Valve (TGV)

TGV TYPE

API6D, SLAB THROUGH CONDUIT GATE VALVE
FLANGED END/BUTT WELDING END
CLASS (300# – 2500#)

SPECIFICATIONS:

Design Standard:
– API6D
– ASME B16.34

Face to face:
– API 6D; ASME:ASME B16.10

End Connections:
-FLANGED: ASME B16.5 / ASME B16.47-A
-BUTT WELDING: ASME B16.25

Test: API 6D / ASME B16.34
Body Material: ASTM A216 WCB, F304, LCB LF2 F51.
Actuation: Handwheel, Worm Gear, Electrical, Pneumatic,
Hydraulic.


Download Technical Specifications

API 6D Trunion Mounted Ball Valve (TBV)

INVERTED PRESSURE BALANCED
LUBRICATED PLUG VALVE
FLANGED END/BUTT WELDING
END/THREADED

SPECIFICATIONS:

Design Standard:
– API 6D
– ASME B16.34

Face to Face:
– API 6D ,
– ANSI B16.10

End Connection:
– FLANGED: RF/RTJ,ANSI
B16.5/ANSI B16.47
– BUTT WELDING: BW,ANSI B16.25

Test: API 6D ,API 598.
Marking: MS SP-25
Body Material: WCB,
A105, CF8,CF8M,CF3,CF3M,F304,F3
16,F304L,F316L,LCB,LF2,F51

Ball Coating: ENP,Tungsten
Carbide Coat (TCC), Chrome Carbide
Coat (CCC)

Actuation: Lever, Worm Gear,
Electrical, Pneumatic,Hydraulic

Download Technical Specifications

API600 – 602 & IBB GATE VALVE

GVT TYPE

API600 & API 602, GATE VALVE.
FLANGED /THRD,BUTT/SOCKET
WELDING END
Nominal Pressure

API600:
FLANGED: CLASS (150 – 2500) #
API602:
FLANGED/THRD/SW/BW:
CLASS(150-2500)#

SPECIFICATIONS:

Design Standard:
– API: API600
– API 602
– ASME: ASME B16.34

Face to face:
– ASME B16.10

End Connections:
– FLANGED: ASME B16.5 / ASME B16.47-A/MSS-SP-44
– BUTT WELDING: ASME B16.25
– THREADED: B1.20.1
– SOCKET WELDING: B16.11

Test : API 598 / ASME B16.34

Body Material:
– ASTM A216 WCB,CF8,CF8M,A352 LCB

Actuation:
– Handwheel, Worm Gear, Electrical, Pneumatic,Hydraulic.


Download Technical Specifications

API6A GATE & MUD GATE VALVES

GV6 & MGV6 TYPE

Features:

* API 6A Design & Test.
* Working Pressure Ratings (PSI) 3000 – 15000.
* Specially designed for mud, cement, fracturing and
water service to handle high and fluctuating pressure
and abrasives.
* Forged bodied and through conduit.
* Sizes 1-13/16”- 5-1/8”
* Grease injection fitting in bonnet.
* Available in standard flange ends, hammer union, hub,
threaded, or butt weld ends.
* Serviced in-line.
* Hard facing of components ensures better protection
highly corrosive, erosive and abrasive conditions.
* Material Class: AA- HH-NL
* Product Specification Level PSL1, PSL2, PSL3, PSL4.
* Performance Requirement Level PR1, PR2
* Working Temperature (-200 to 3500F).


Download Technical Specifications

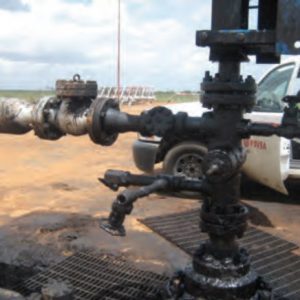

API6D Lubricate plug valve model (IPV)

API6D INVERTED PRESSURE BALANCED LUBRICATED PLUG VALVE

FLANGED END/BUTT WELDING
END/THREADED

SPECIFICATIONS:

SIZE:
(2 – 6)” /FULL PORT, CLASS (300# – 2500#)

Design Standard:
– API6D/API599
– ASME B16.34

Face to face:
– ASME B16.10

End Connections:
– FLANGED: ASME B16.5
– BUTT WELDING: ASME B16.25
– THREADED: ANSI/ASME B1.20.1

Test: API 6D / API598
Materials: NACE MR075. Sulfide stress
cracking resistant metallic materials for oil
field equipment

Actuation: Lever, Handwheel, Worm Gear,
Electrical, Pneumatic, Hydraulic


Download Technical Specifications

BFV-2EXC TYPE

BUTTERFLY VALVE,
DOUBLE EXCENTRIC,SHUT OFF
PN2.5 (0.63 MPa) / WAFER, LUG, FLANGE, BW

SPECIFICATIONS:

  • DESIGN: EN593
  • FACE TO FACE DIMENSION: ISO 5752
  • END FLANGE DIMENSION: EN1092
  • STD TEST: EN12266
  • SHUT OFF: ANSI CLASS VI.
  • SHELL TEST PRESSURE (Ps): 0.385 MPa
  • SEAL TEST PRESSURE (Pn): 0.165 MPa
  • TEMPERATURE RANGE: 0 to 150 º C
  • SELF ADJUSTING STEM PACKING
  • BLOW-OUT PROOF STEM DESIGN
  • ISO 5211 MOUNTING PAD
  • GEAR OPERATED / PNEUMATIC OPERATED

OPTIONS:

  • SILICONE FREE / OIL & GREASE FREE
  • APPLICATIOS: AS SHUTTING OFF OR FLOW CONTROLLING IN
    CHIMNEYS AND DISCHARGING DUCTS
  • SERVICE: AIR, GAS, STEAM


Download Technical Specifications

BFV-RSCL TYPE

BUTTERFLY VALVE,
RESILENT SEATED,CENTERLINE

Usually used to cut off flow in piping
systems. widely applied in the field of:

* Potable water,
* Water supply and drainage,
* Sewage disposal,
* Irrigation
* Air conditioning
* Fire Protection
* Chemical &
* Energy Industry

Design:

-Designed to comply with MSS SP-67. EN 593, API 609
* Meets ASME B16.1 & ASME B16.5 Flanges
* Wafer and Lugged Body Design, Face to face dimensions
according to EN 558 Series 20 and API 609

Download Technical Specifications

BFV-TEXC TYPE

BUTTERFLY VALVE,
TRIPLE EXCENTRIC,SHUT OFF
/ WAFER, LUG, FLANGE, BW

Design & Manufacture to Meet with:

a. API 609(Category B),ASME B16.34, Flanged, Wafer & Lugged Body.
Flanges meets with:
1. Wafer & Wafer Lugged:
* Face to face: API 609.
* End Flange Dimensions: ASME B16.5 & ASME B16.47.
2. Flanged:
* Face to face: API 609/ ISO 5752 Ser. 13/ Ser. 14/ Ser. 8
* Test: API 598.
EN 593, Flanged, Wafer and Lugged Body.
* Flanges meets with EN 1092.
* Face to face dimension: EN 558.
* Test: EN 12266-1

Download Technical Specifications
